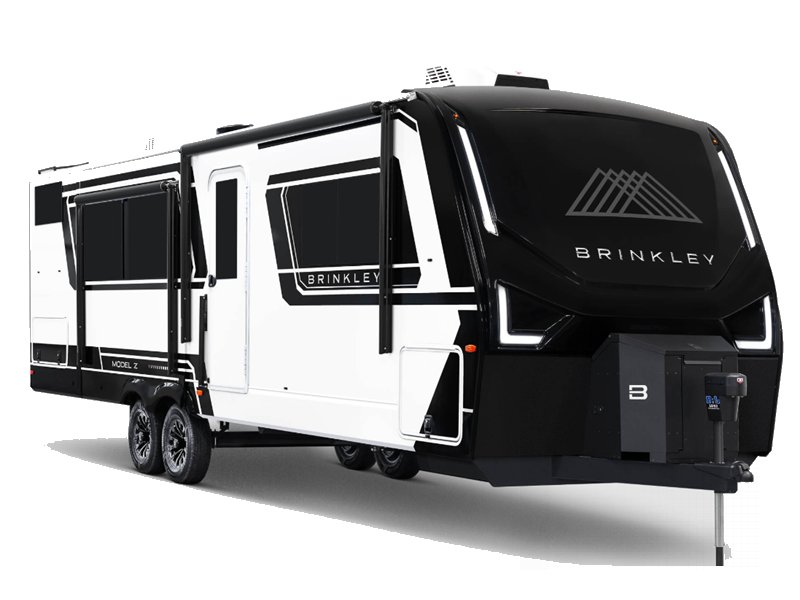

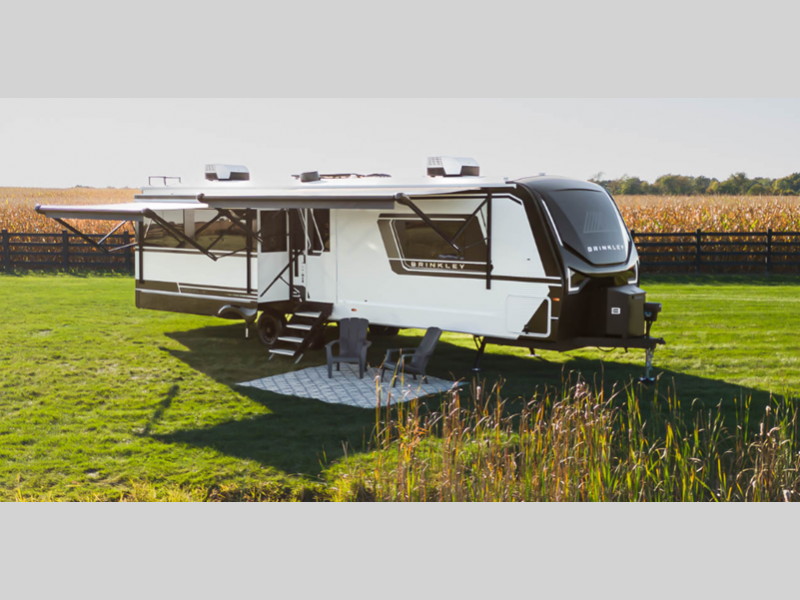

Brinkley Model Z Air Travel Trailer RVs For Sale
Brinkley's premium travel trailers are the new Model Z Air; come take a look! Like all RVs at Brinkley, you can be sure you're getting a quality-built, innovative travel trailer designed with you in mind!
The drop frame chassis will provide a smooth tow from home to campground, and the one-touch automatic leveling system will have you set up in no time. You will love the sleek styling with automotive-grade exterior graphics, along with the square Euro frameless windows with 6" openings. Inside, there are premium residential cabinet and drawers, solid surface countertops, Brinkley's CraftSense wood trim construction, and many more premium features.
Choosing the Model Z Air travel trailer by Brinkley may just be the easiest decision you'll ever make!
-
Model Z Air 285
Brinkley Model Z Air travel trailer 285 highlights: Kitchen Island Dual Opposing ... more about Model Z Air 285
Specifications
Sleeps 3 Slides 2 Length 33 ft 11 in Ext Width 8 ft Ext Height 11 ft 7 in Int Height 7 ft Hitch Weight 890 lbs GVWR 11495 lbs Dry Weight 9242 lbs Fresh Water Capacity 62 gals Grey Water Capacity 110 gals Black Water Capacity 40 gals Tire Size 225/75R16 Furnace BTU 35000 btu Available Beds Queen Refrigerator Type 12V Refrigerator Size 16 cu ft Cooktop Burners 3 Shower Size 30" x 42" Number of Awnings 2 Axle Weight 5600 lbs LP Tank Capacity 30 lbs. Water Heater Type Tankless On Demand AC BTU 36000 btu TV Info LR 42" Smart TV; BR 32" Smart TV Awning Info 8' 6" and 12' Axle Count 2 Washer/Dryer Available Yes Number of LP Tanks 2 Shower Type Standard Similar Floorplans
-
Model Z Air 295
Brinkley Model Z Air travel trailer 295 highlights: Eat-In Kitchen Island Dual ... more about Model Z Air 295
Have a question about this floorplan? Contact Us
Specifications
Sleeps 6 Slides 2 Length 34 ft 9 in Ext Width 8 ft Ext Height 11 ft 7 in Int Height 7 ft Hitch Weight 870 lbs GVWR 11495 lbs Dry Weight 9168 lbs Fresh Water Capacity 62 gals Grey Water Capacity 80 gals Black Water Capacity 40 gals Tire Size 225/75R16 Furnace BTU 35000 btu Number Of Bunks 2 Available Beds Queen Refrigerator Type 12V Refrigerator Size 16 cu ft Cooktop Burners 3 Shower Size 30" x 42" Number of Awnings 2 Axle Weight 5600 lbs LP Tank Capacity 30 lbs. Water Heater Type Tankless On Demand AC BTU 36000 btu TV Info LR 50" Smart TV; BR 32" Smart TV Awning Info 8' 6" and 12' Axle Count 2 Number of LP Tanks 2 Shower Type Standard Similar Floorplans
-
Model Z Air 310
Brinkley Model Z Air travel trailer 310 highlights: Kitchen Island Theater Seats ... more about Model Z Air 310
Have a question about this floorplan? Contact Us
Specifications
Sleeps 6 Slides 3 Length 37 ft 10 in Ext Width 8 ft Ext Height 11 ft 9 in Int Height 7 ft Hitch Weight 1086 lbs GVWR 14495 lbs Dry Weight 10961 lbs Fresh Water Capacity 62 gals Grey Water Capacity 105 gals Black Water Capacity 45 gals Tire Size 16" Available Beds Queen Refrigerator Type 12V Refrigerator Size 16 cu ft Cooktop Burners 3 Shower Size 30" x 42" Number of Awnings 2 Axle Weight 7000 lbs LP Tank Capacity 30 lbs. Water Heater Type Tankless On Demand AC BTU 36000 btu TV Info LR: 50" Smart TV; BR: 32" Smart TV Awning Info 10' 6" and 15' Axle Count 2 Number of LP Tanks 2 Shower Type Standard Similar Floorplans
Model Z Air Features:
Standard Features (2025)
Chassis & Suspension
- Drop Frame Chassis (Brinkley Spec & Certified)

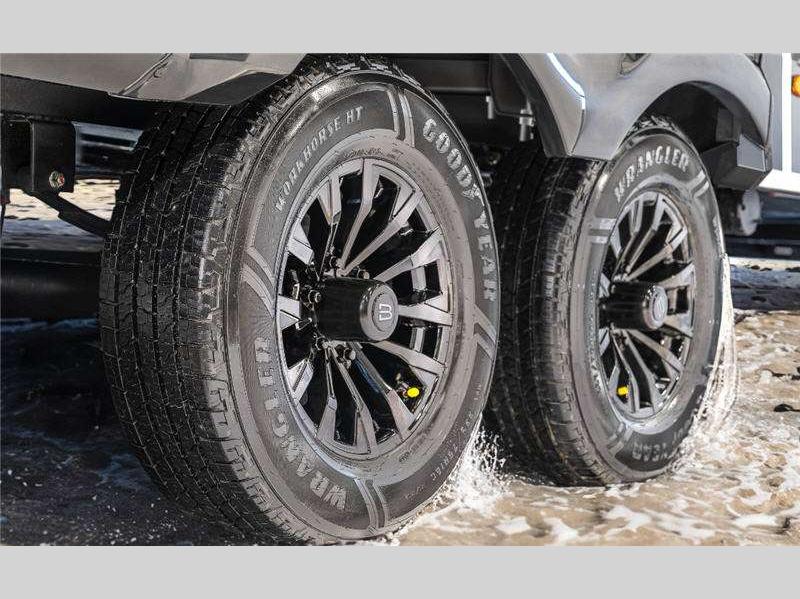

- 16" Custom Aluminum Luxury Wheels
- Banded Tire Pressure Monitoring System (TPMS) w/ Wireless Display
- Automatic One Touch 5-Point Leveling & Stabilization System w/ Hitch Height Memory
- Heavy Duty 5,600 lbs. Axles w/ 6,000 lbs. Leaf Springs (285 & 295)
- Heavy Duty 7,000 lbs. Axles w/ 8,000 lbs. Leaf Springs (310)
- Shock Absorbers
- High-Performance Road Armor™ Suspension Equalizer System
- Reinforced Axle Hangers
- Over 2,200 lbs. of Gross Carrying Capacity (285 & 295)
- Over 3,500 lbs. of Gross Carrying Capacity (310)
- Demco EZ Latch Trailer Coupler
- Upgraded 6' Coiled Breakaway Safety Cable
- LED Under-Coach Ground Lighting
- 2" Rear Receiver Hitch w/ 4-Way Connector (300 lbs. Tongue Weight 3,000 lbs. GTW)
Exterior & Storage
- Square Euro Frameless Windows w/ 6" Openings
- Dual Pane Square Euro Frameless Windows w/ 6" Openings (Optional)
- Sleek & Clean Styling w/ Automotive-Grade Exterior Graphics
- Automotive Front Cap, Lights, & Lenses
- Exterior Speakers w/ Bluetooth & Campside Controls
- Dual Electric Awnings w/ LED Lighting
- Off-Campside LED Flood Light
- Backup Camera & Wireless Monitor w/ Observation/Security Mode
- Winegard Air 360+ TV & FM Antenna w/ Wi-Fi Booster
- Heated & Insulated Pass-Through Storage Compartment w/ Motion Lighting & Power Outlets
- Over 45 Cubic Feet of Exterior Storage (285)
- Over 70 Cubic Feet of Exterior Storage (310)
- Over 100 Cubic Feet of Exterior Storage (295)
- Front Pass-Through Storage Compartment:
- Full-Width LED Strip Lighting
- 4x Power Outlets
- Antenna/Coax Hookup
- Forced-Air Heated & Insulated

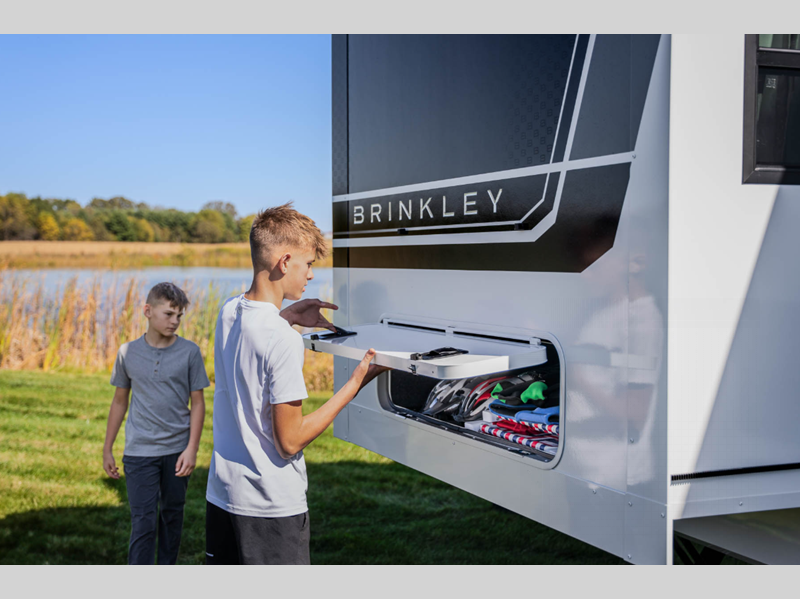

- Off-Campside 'Saddle Bag' Drop-Down Storage Area
- Rear Storage Compartment (310):
- 2x Power Outlets
- Motion Activated Lighting
- Forced-Air Heated & Insulated
- Rear to Campside Pass-Though Drop-Frame Storage Compartment: (295)
- Flip-Down Cargo Divider
- 4x Power Outlets
- Motion Activated Lighting
- Cargo Pocket w/ Sliding Access Door
- Adjustable Cargo Bay Tie-Down System w/ 4 L-Tracks (User Installable)
- Forced-Air Heated & Insulated
- Tough-Ply Floor & Walls in Storage Compartments
- Pet & Property Security Campside Tie-Down
- Slam Latch Baggage Doors
- High-Capacity Heavy-Duty Secure Step Ladder w/ Weep Holes
- Custom LP & Gear Box w/ Locked Battery & Tool Storage
- Rock Guard Front Protective Shields
- Deluxe Entrance Package:
- Oversized 30"x76" Entry Door
- Keyless Entry
- Integrated Window Shade
- Child/Pet Defender Screen Protector
- Slapshot Screen Door Opener
- Screen Assist – Bounceback Technology
- Extra-Wide & Deep Solid Entry Steps
- 54" Telescoping Entry Grab Handle (Extends to Bottom Step)
Solar, Electrical & HVAC
- 370 Watt Solar Panel (740 Watt Ready)
- 60 Amp MPPT Solar Controller (Inverter Prep & Lithium Ready)
- 18k BTU Rear Furrion Chill Cube Air Conditioner (Main)
- 18k BTU Front Furrion Chill Cube Air Conditioner (Bed & Bath)
- Brinkley Smart-Command™ Center w/ App Control
- Thermaflex® No Kink No Tear Heat Ducts
- Travel & Storage Mode Battery Disconnects
- Loomed, Labeled, & Color Coded Wiring Harness for Easy Serviceability
- Wire Conduit for Aftermarket Upgrades (Roof> Interior> Basement)
- 35k BTU High-Capacity Furnace
- Detachable 50-amp Power Cord w/ Angled Connector
Plumbing & LP
- Brass Plumbing Fittings
- Water Shutoff Valve on ALL Fixtures
- Upgraded Holding Tanks w/ True Capacities
- Thermofoil Insulated & Heated Holding Tanks w/ Steel Cross Supports
- Electric Waste Valves w/ Indicator Light & Manual-Override (Enclosed & Heated)
- Extended Sewage Hose Storage
- Clear Sewer Cap w/ Lanyard
- Brinkley On-Command™ Docking & Utility Center
- 65' Retractable City Water Hose
- 2x 90-Degree Brass Elbows for Docking Station Water Hoses
- EZ Winterization Valve in Utility Center
- Washer/Dryer Prep (Stackable or Combo) (285)
- Washer/Dryer Prep (Side-by-Side or Combo) (310)
- 2x Hot/Cold Exterior Spray Ports (Campside & Off-Campside)
- Tankless On-Demand Water Heater (144 Gallons Per Hour)
- 2x 30 lbs. LP/Propane Tanks
- LP-IQ Propane Gauge
- Exterior LP Quick Connect

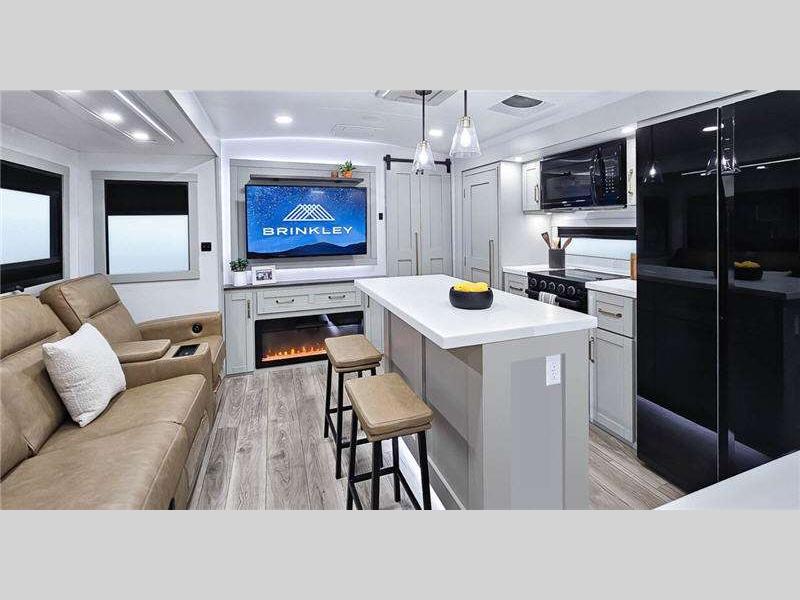

Interior & Living Spaces
- Brinkley CraftSense™ Wood Trim Construction
- DUAL Flush Floor Galley & Livingroom Slides
- 72.5" Slide Out Height
- Window Intergraded Day Screens & Blackout Shades w/ Reflective Insulation + Full Bug Screens
- Dimmable Living Room Lights
- 42" Smart TV & Televator (Powered TV Elevator) (285 & 310)
- 50" Smart TV w/ Articulating Mount (295)
- Premium Audio System w/ Bluetooth w/ Physical Controls
- Entertainment Shelf (Behind TV)

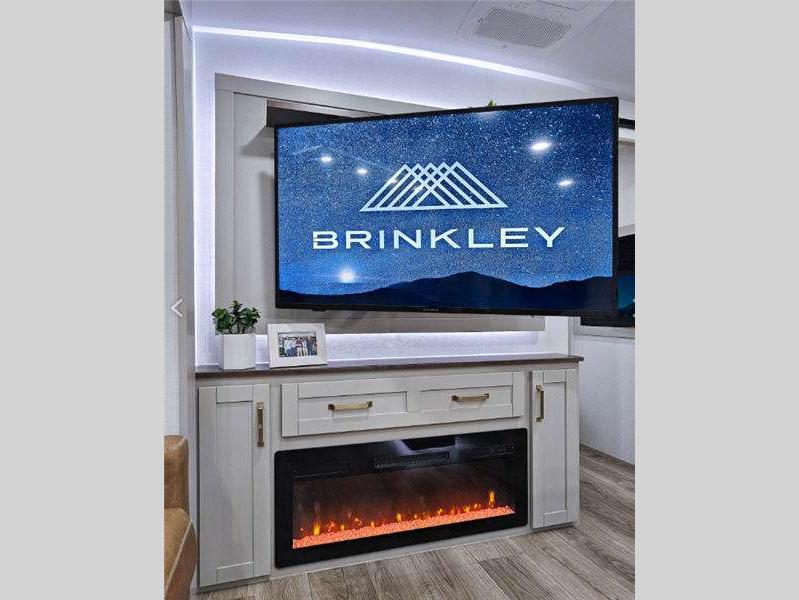

- Fireplace w/ 5,000 BTU Electric Heat
- Wall Hugger Theater Seating w/ Heat & Wireless Charging (2x Recliners) (285 & 310)
- Wall Hugger Theater Seating & Sofa w/ Heat & Wireless Charging (3x Recliners) (295)
- 72" Trifold Sofa w/ Scotchgard Protection (62"x70" Sleeper) (310)
- Residential End Tables w/ Storage & Pop-Up Outlets & USB Ports (310)
- Desk w/ Outlets, Pencil Drawer, & Overhead Storage Cabinets (285)
- 14 Outlets - 4 w/ USB & USB-C (295)
- 13 Outlets - 3 w/ USB & USB-C (285)
- 23 Outlets - 5 w/ USB & USB-C (310)
- Well-Placed Outlets w/ USB & USB-C High-Speed Charging Stations
- Soft-Close Cabinet Doors
- Pet-Friendly Package:
- Ductless Floors in Main Living Areas
- Child/Pet Defender Screen Protector
- 100% Carpet Free
- Exterior Pet & Property Security Tie-Down

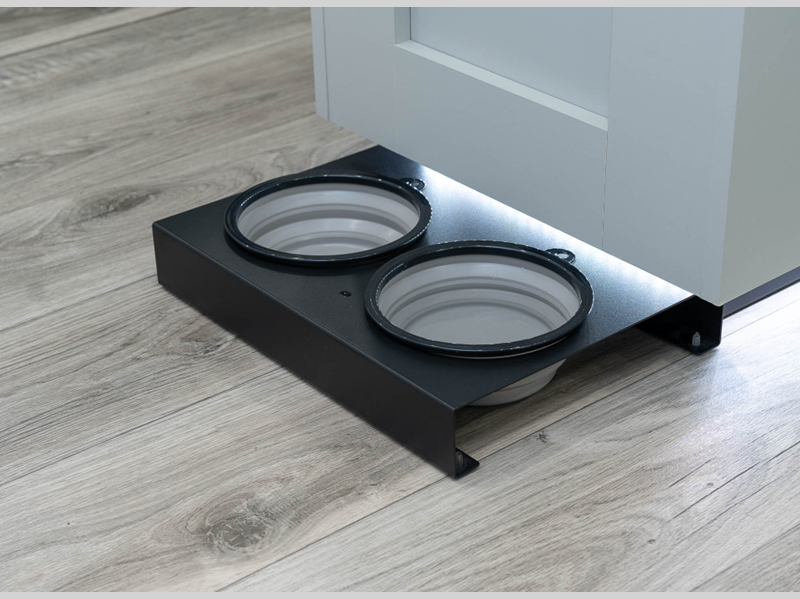

- Magnetic Pet Feeder w/ Removable Bowls (Snags to Island Base)
Kitchen & Dining

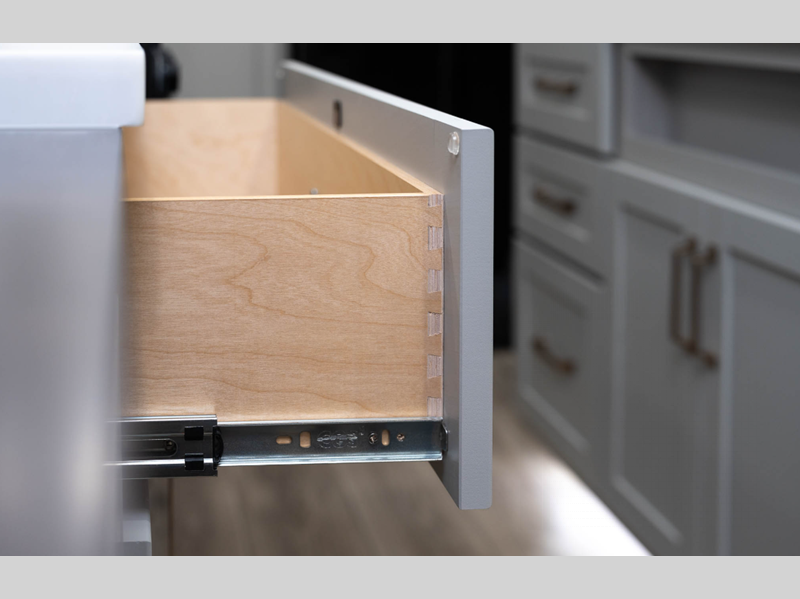

- Premium Residential Drawers w/ Dovetail Joints
- Residential Solid Surface Countertops
- One-Piece Steel Island Base (Super Stable)
- Flip-Down Island Bar w/ Stools (295)

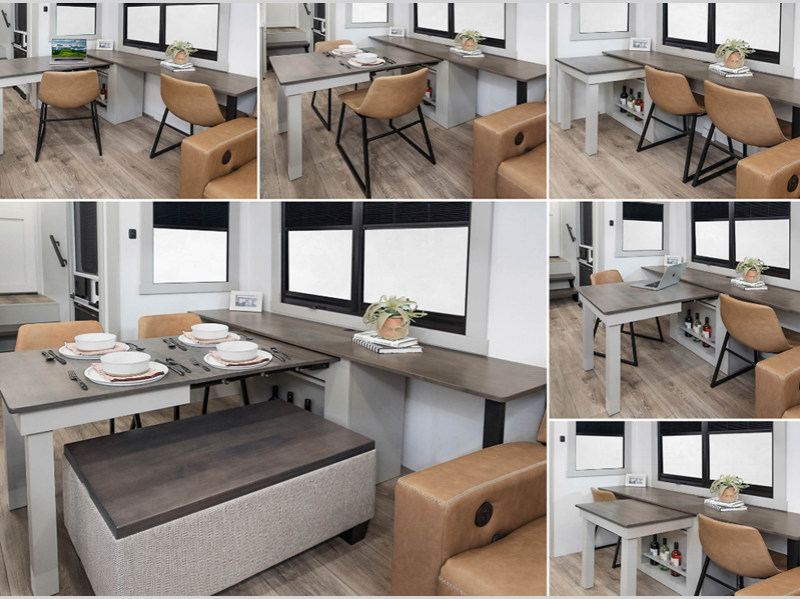

- Brinkley Z Dinesk™: Sliding Desk/Dining Table w/ Automatic Extending Leaves & Storage Drawer (4 Position) (310)
- Sleeper Dinette w/ Storage Drawer & Indirect Mood Lighting (285)
- Pull-Out Trash Bin w/ Utility Storage (285 & 310)
- Dual Pull-Out Trash Bins (295)
- Stow ‘N Go Paper Towel Holder
- Custom Spice Rack Drawer Insert (Removable) (310)
- Premium Residential Soft Close Cabinets
- Magnetic Cabinet & Drawer Catches
- Large Pantry w/ Adjustable Shelves & Appliance Outlet
- Second Pantry (Next to Fridge) (285)
- 16 Cubic Feet Energy Efficient 12-Volt Refrigerator
- Residential 30" Microwave

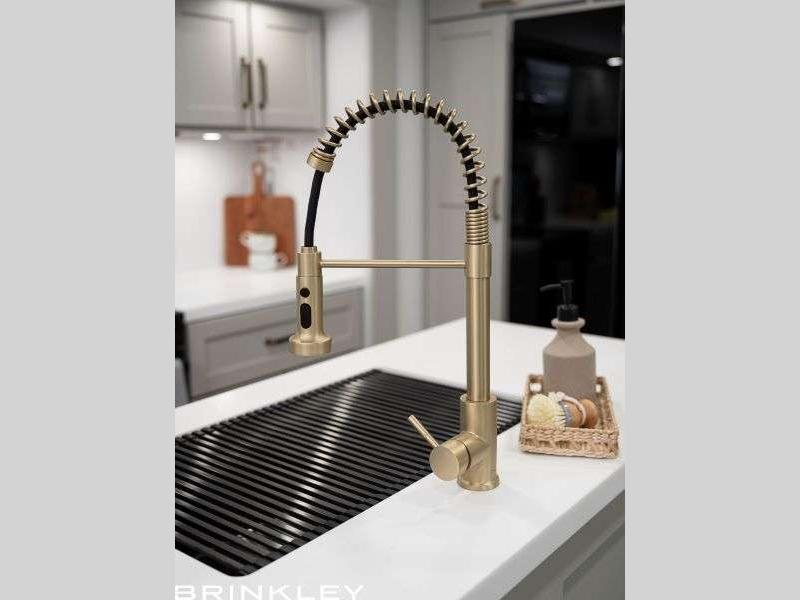

- Farmhouse Sink & Roller Cover
- Soffit & Island Base w/ Indirect Mood Light
- Hutch w/ Solid Surface Countertop (310)
- Maxxair Fan w/ Rain Sensor
Bathroom
- Marine Grade Neon LED Shower Lighting
- Space Saver Bathroom Passage Door(s)

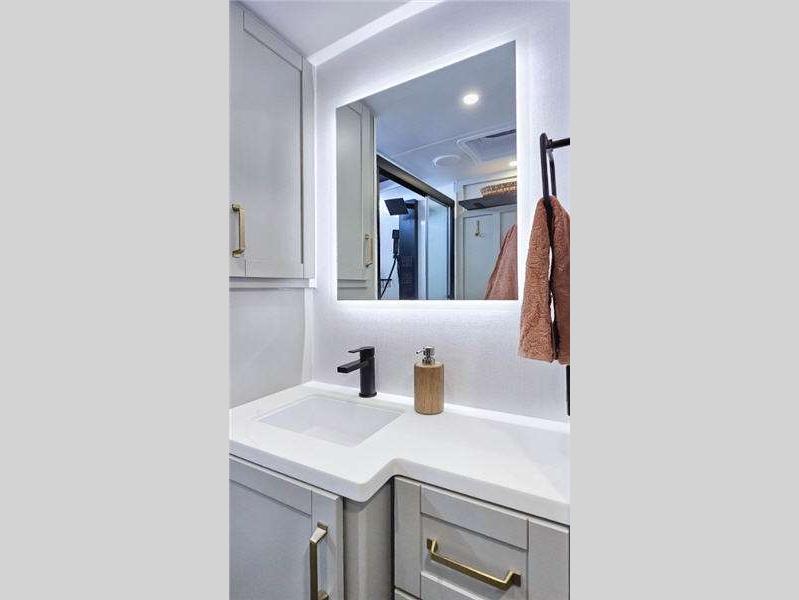

- Lighted Bathroom Mirror
- Residential Solid Surface Countertop
- Glass Sliding Shower Door
- One-Piece 30"x42" Fiberglass Shower Surround w/ Seat (Max Height)
- Dual Access Bathroom to Bedroom Pass Through Storage Cabinet
- 3 Matching Bath Hooks
- Toilet Paper Holder w/ Magnetic Travel Keeper
- Overhead Shelf
- Porcelain Toilet
- Maxxair Fan w/ Rain Sensor
Bedroom
- Dimmable Bedroom Lights

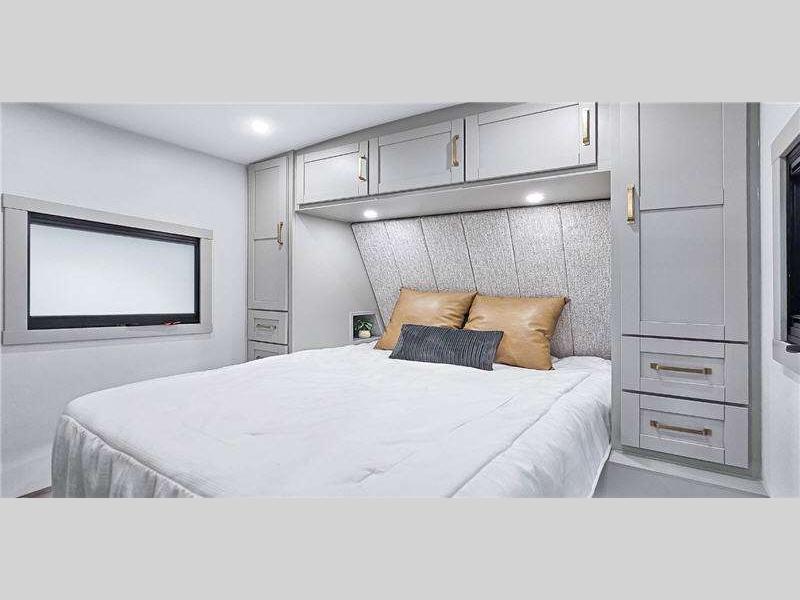

- Queen Bed w/ Residential 9" Memory Foam Mattress (60"x80") (285 & 295)
- Queen Bed w/ Residential 9" Memory Foam Mattress (60"x80") & Nightstands (310)
- King Bed w/ Residential 9" Memory Foam Mattress (70"x80") (Optional on 310)

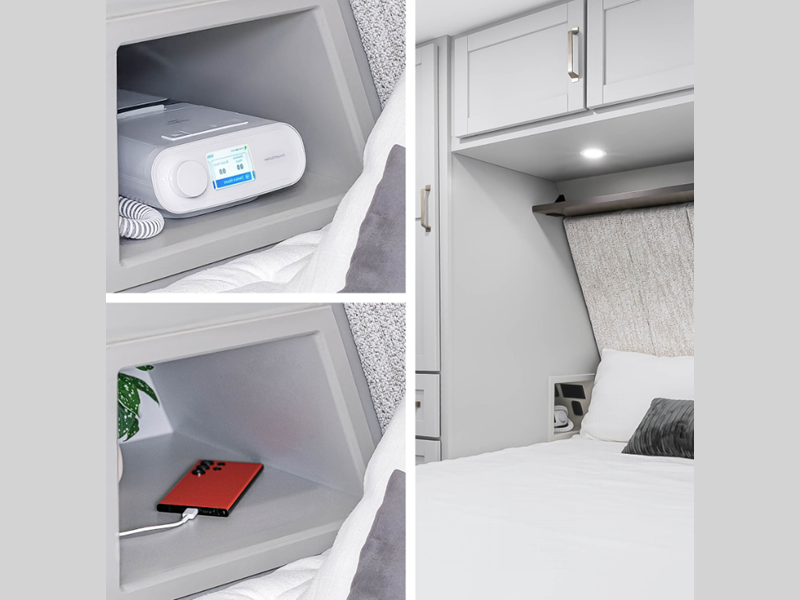

- Dual Built-in Bedside Storage Cubbies w/ Outlets & USB & USB-C Charging Ports (CPAP Ready) (285 & 295)
- Dual Bedside Overhead Shelves (CPAP Extensions Available Through Parts Dept.) (310)
- Matching Comforter & 3 Pillow Package
- Dual Motion Activated LED Bed Lights
- Padded Headboard w/ Overhead Shelf (285 & 295)
- Finished Under-Bed Storage Compartment (295 & 310)
- 4x Under-Bed Storage Drawers (285)
- 2x Felt-lined Under-Bed Storage Trays (285)
- Under-Bed Storage Space w/ Lockable In-Floor Steel Safe (285)
- Dual Reading Sconce Lights
- Cordless Vacuum Prep w/ Closet/Wardrobe Outlet
- Dual Wardrobe Closets w/ Drawers (285 & 295)
- Triple Wardrobe Closets w/ Drawers (310)
- Residential Style Dresser (310)
- Hidden Sliding Dresser Top Storage Compartment (310)
- 32" Smart TV

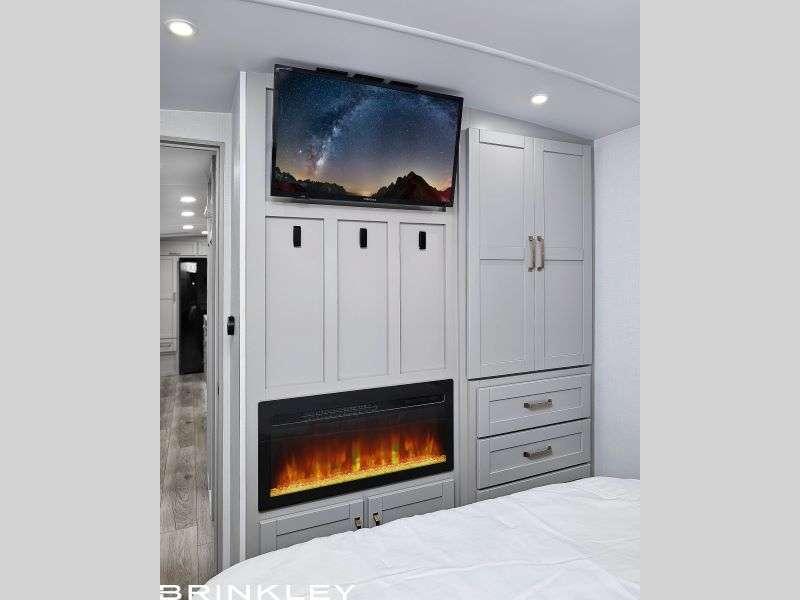

- Fireplace w/ 5,000 BTU Electric Heat (Bedroom) (285)
- 3x Folding Wall Hooks
Second Bedroom (Rear Bunkhouse)
- Residential Interior Door (Private Bedroom) (295)

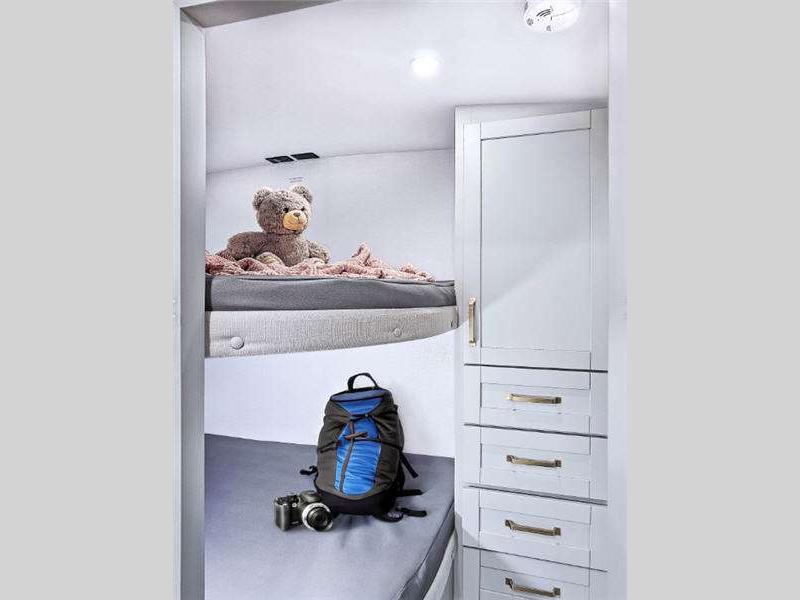

- Stacked Rear Bunk Beds w/ Double Mattresses (54”x74”) (295)
- Floor to Ceiling Storage Cabinet w/ Drawers (295)
- TV Prep (Power, Mounting Backer, & Antenna/Coax) (295)
- Outlets & USB Charging Station (Upper & Lower Bunk) (295)
Construction
- Basement Utility Access w/ Removable Sliding Doors & Motion Activated Lights
- Brinkley Automotive-Grade Sealant Package
- Automotive-Style Riveted Wheel Skirts & Panels
- Laminated Exterior Walls w/ High-Gloss Gel Coat Fiberglass & Azdel
- Reinforced & Walkable Slide Roofs
- Thermaflex® No Kink No Tear Heat Ducts
- Loomed, Labeled, & Color Coded Wiring Harness for Easy Serviceability
- Water Shutoff Valve on ALL Fixtures
- All-in-One EK Repairable Slideout Seal System
- Brass Plumbing Fittings
- Industry Best Insulation Package:
- R40 Roof, R11 Walls, R40 Floor Insulation
- Double Insulated Roof, Front Cap, & Main Floor
- Heated & Enclosed Underbelly (Circulated)
- Insulated Slideout Floors
- Every Coach Every Time - Industry Leading Pre-Delivery Tests & Inspection Process:
- Industry Leading 350+ Point Inspection & Testing Process
- Off-Road Simulation Tested (Industries Exclusive)
- Complete Unit Pressure Test (Seals, Gaskets, Slideout, Etc.)
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
